Engineered water filtration, separation, and treatment systems — each configurable to your specific water chemistry, flow rates, and site conditions. Click any product to view the full process schematic and specifications. The custom design products will enable pushing the boundary conditions of the technology, as well as ease in handling upset conditions.
The products are designed and developed for removing TSS, Oil in water (Oil and Grease), TOC, COD, TDS, BOD, Ammonia, Sulfides, Soluble range hydrocarbons, VOCs, S-VOC, heavy metals and sludges.
15 products shown
High-Efficiency Oil-Water-Gas Separation
Best-in-class oil-water-gas separation for high-volume produced water streams. Wellsite-ready, handles variable inlet conditions with consistent outlet water quality.

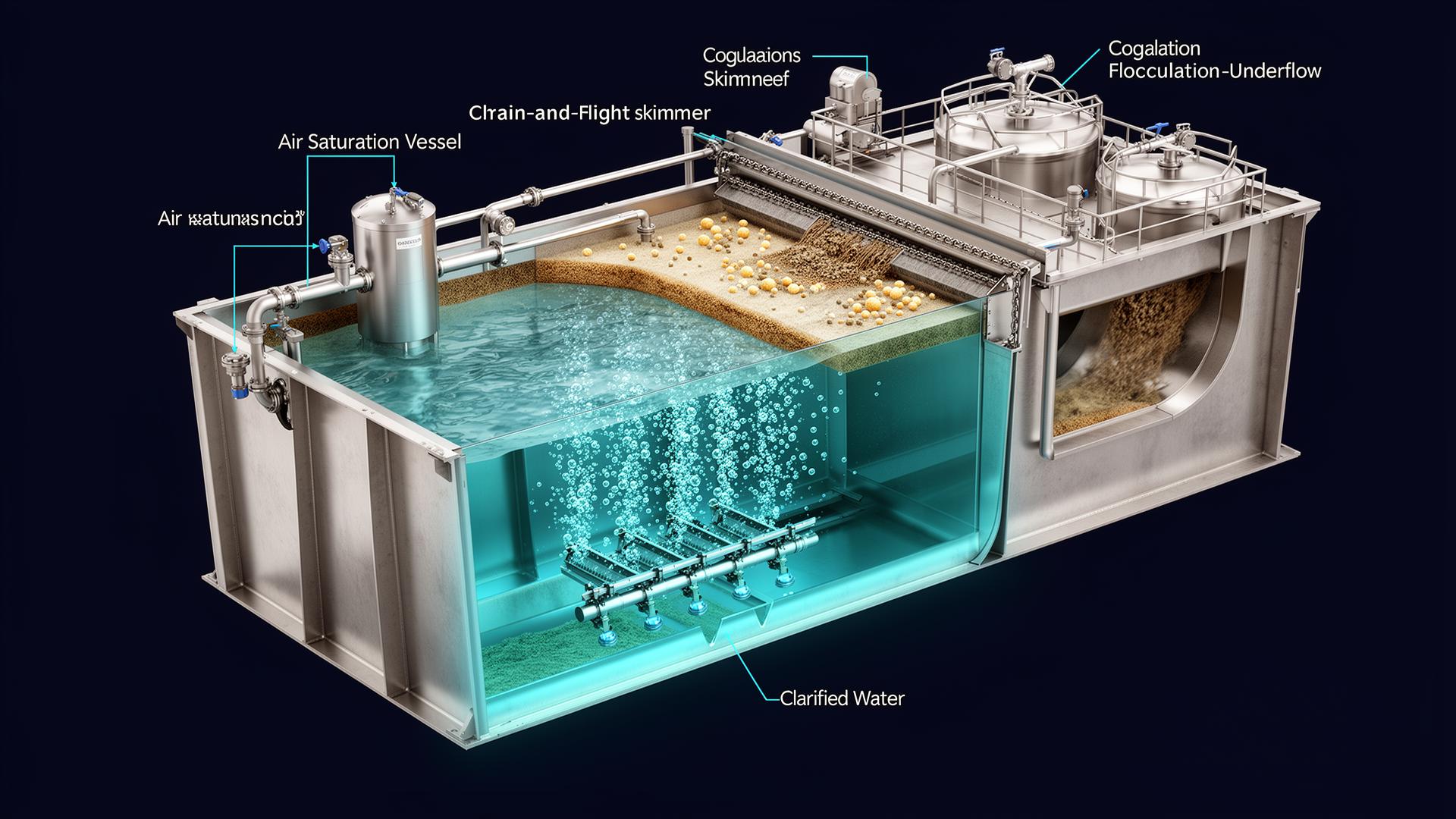

Dissolved, Dispersed & Induced Gas Flotation for Produced & Refinery Water
Flotation clarification family covering DAF (dissolved air), DGF (dispersed gas), and IGF (induced gas) — removes dispersed oil, suspended solids, and biological material with low chemical demand.

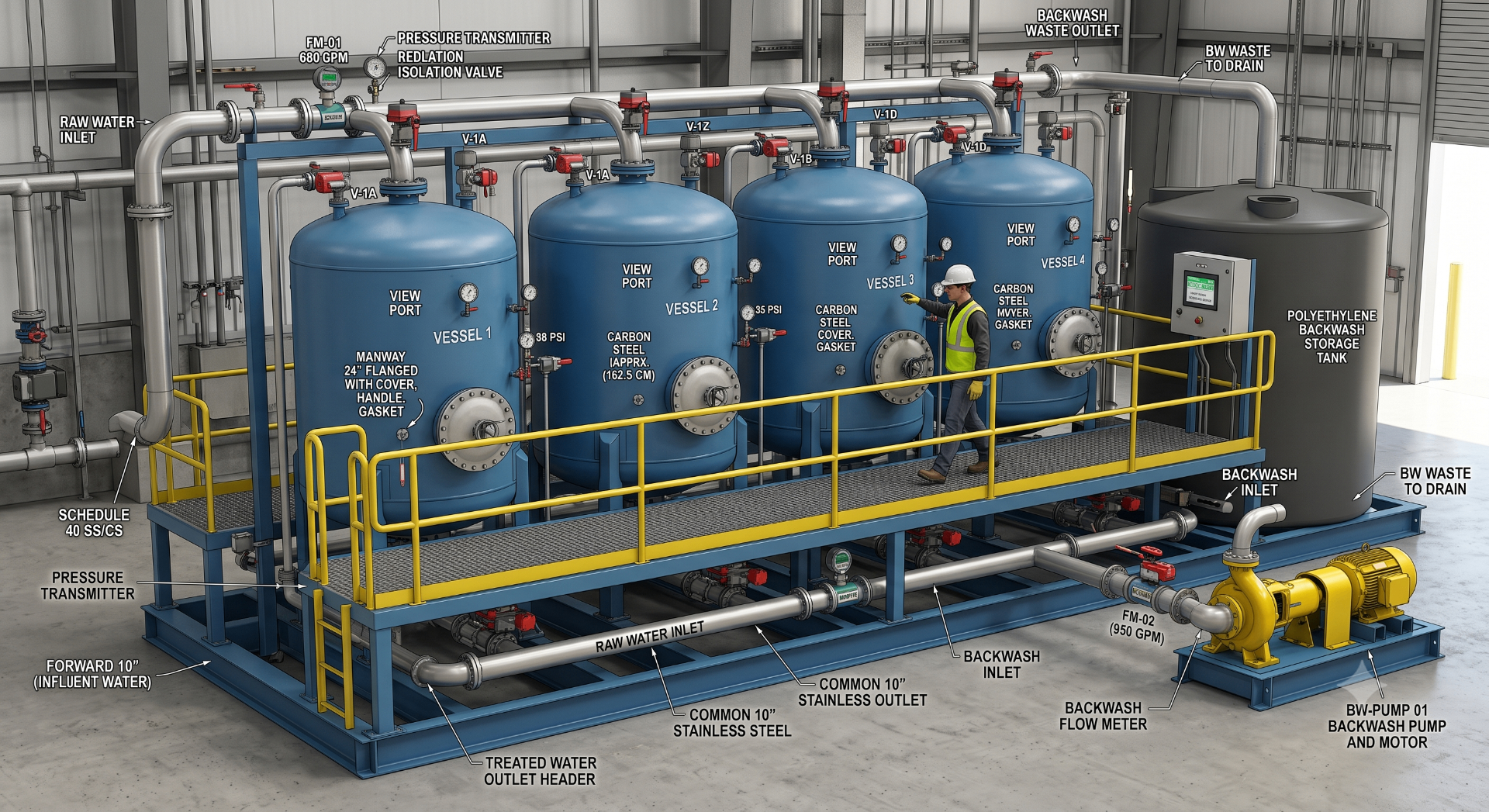

Deep-Bed Anthracite-Sand-Garnet Filtration
Staged beds of anthracite, silica sand, and garnet remove suspended solids, iron, and silica to single-digit NTU — protecting downstream membranes and injection wells.

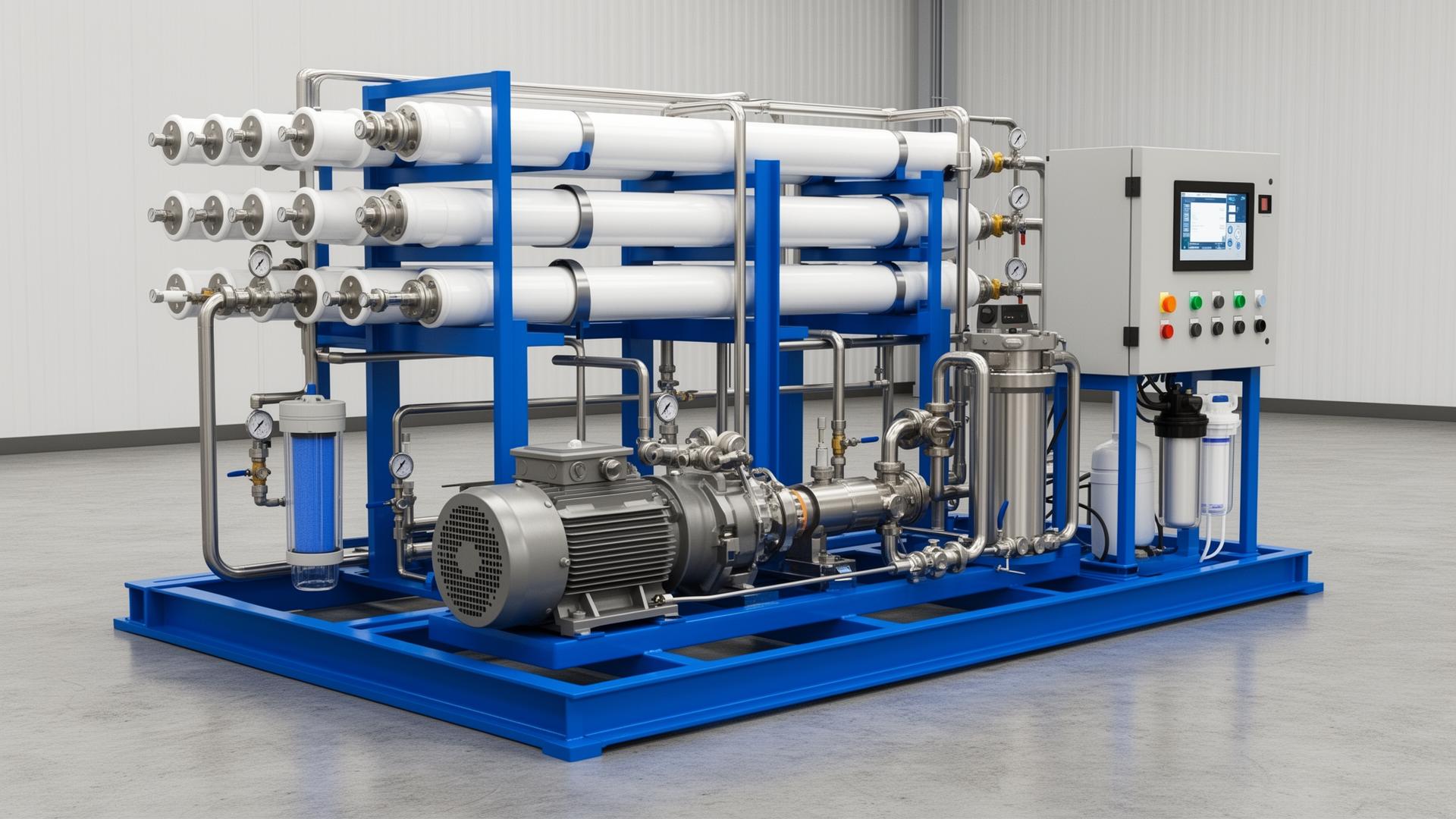

High-Rejection Reverse Osmosis for Oilfield Brines
Ultra-pure water from high-TDS produced water and formation brines. Purpose-built pre-treatment and anti-scalant dosing for challenging feed water chemistries.
Precision Multi-Chemical Injection Skid
Integrates scale inhibitor, corrosion inhibitor, biocide, and oxygen scavenger dosing into a pre-engineered skid with metering pumps, day tanks, and automated control.

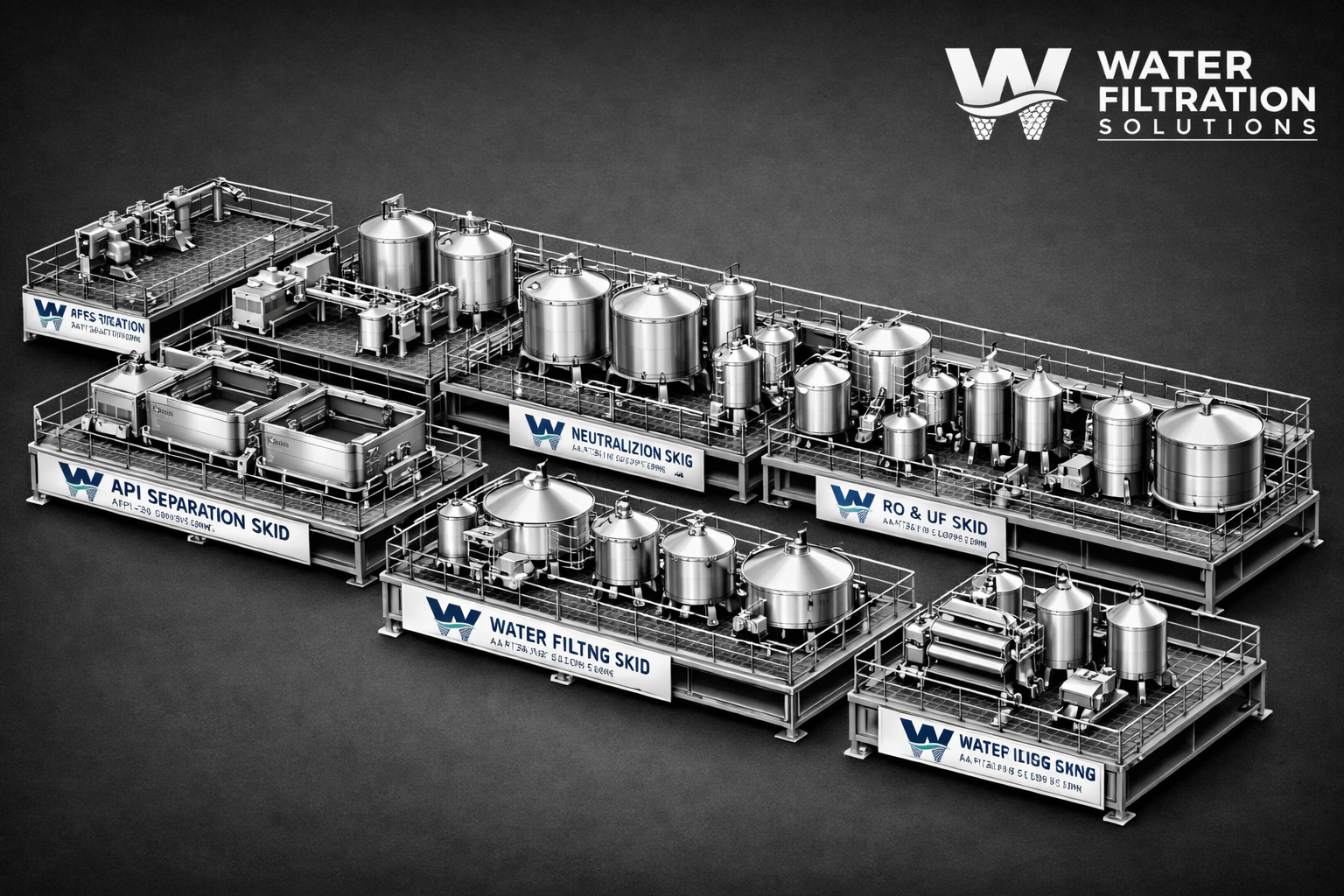

Complete Factory-Tested Modular Treatment System
Complete water treatment plants in ISO container frames — pre-piped, pre-wired, factory-tested for immediate deployment in remote or temporary production environments.

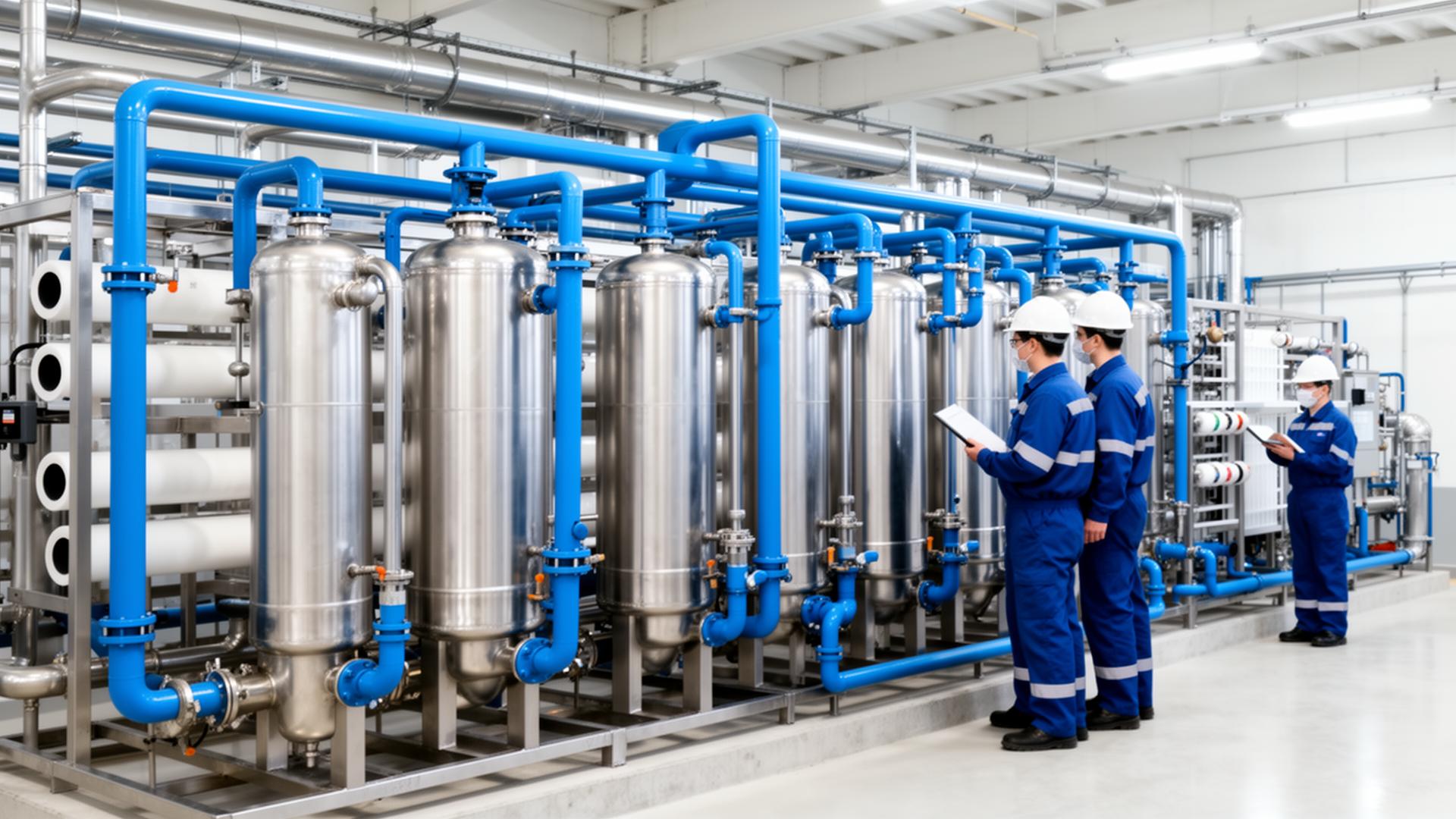

0.02µm Absolute Barrier Membrane Filtration
PVDF hollow-fiber UF systems provide an absolute barrier to turbidity, bacteria, and colloids. Compact skid design — ideal for permanent facilities and well-site RO pre-treatment.
Zero Liquid Discharge for High-Salinity Brines
MVR evaporators concentrate high-salinity produced water and refinery brine to crystalline solids — achieving true Zero Liquid Discharge and eliminating Class II injection wells.
Rectangular Gravity Oil-Water Separator with Corrugated Plate Pack
Rectangular API/CPI gravity separator with corrugated plate pack, surface oil skimmer, sludge hopper, and dedicated skim tank — engineered for high oil recovery and low maintenance.
Modular AOP Skid — 9 Selectable Oxidation Chemistries
Modular chemical injection and oxidation skid supporting Fenton's, ozone, ClO₂, UV, photocatalytic, electrochemical, chlorination, permanganate, and ferrate oxidation in a single configurable platform.
Aerobic Biological Treatment for BOD, COD, Ammonia & Recalcitrant Organics
Three biological treatment configurations on a common platform: SBR (sequencing batch), MBR (membrane bioreactor), and MBBR (moving-bed biofilm) — engineered for oil & gas, refinery, and petrochemical wastewater.
Multi-Vessel Bag Filter Housings — up to 100 m³/hr
Multi-vessel bag filter skids for pre-filtration, slop, and process duty. PP, PE, nylon, Nomex, and PTFE felt bags from 1 to 200 µm, single-bag or multi-bag housings sized to 100 m³/hr.

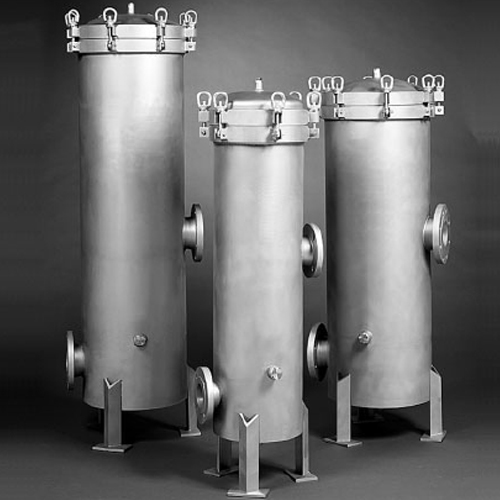

Single & Multi-Round Cartridge Vessels for Membrane Protection
Pleated, melt-blown, string-wound, and absolute cartridge filters in single and multi-round housings — the standard guard filter upstream of UF, RO, and ion-exchange systems.
Complete BTEX / VOC Removal Train with Off-Gas Treatment
Cylindrical vertical packed-tower air stripper (50–100 m³/hr) for BTEX and VOC removal, paired with a scrubber tank and 2–4 GAC media polishers on the off-gas — a complete emissions-controlled VOC train.
Granular Activated Carbon Polisher — Trace Contaminant Removal
Lead-lag GAC vessel skid for trace contaminant polishing — removes residual hydrocarbons, color, taste & odor, chlorinated solvents, and trace organics down to non-detect.
Our applications engineers design bespoke treatment trains for unique water chemistries, flow rates, and space constraints.
Share your water chemistry, flow rate and discharge spec — our engineers scope a treatment train and return a tailored, confidential estimate for your site.
